DT-80D6 360° Rotate Most Advanced Automatic Borehole Inspection Camera

DT-80D6 360° Rotate Most Advanced Automatic Borehole Inspection Camera

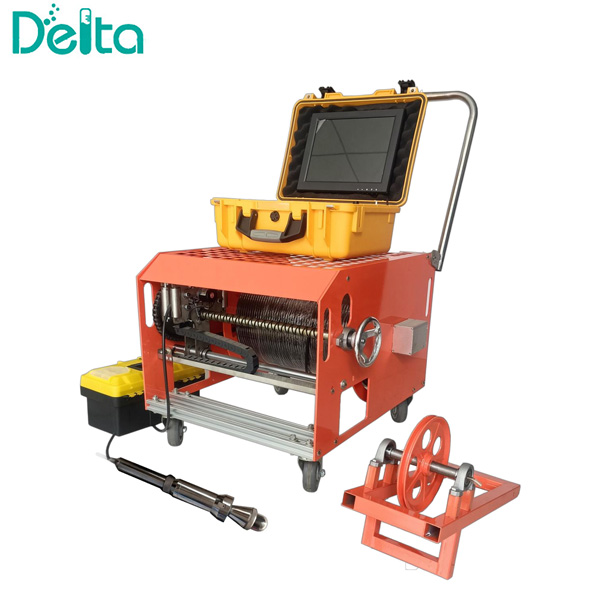

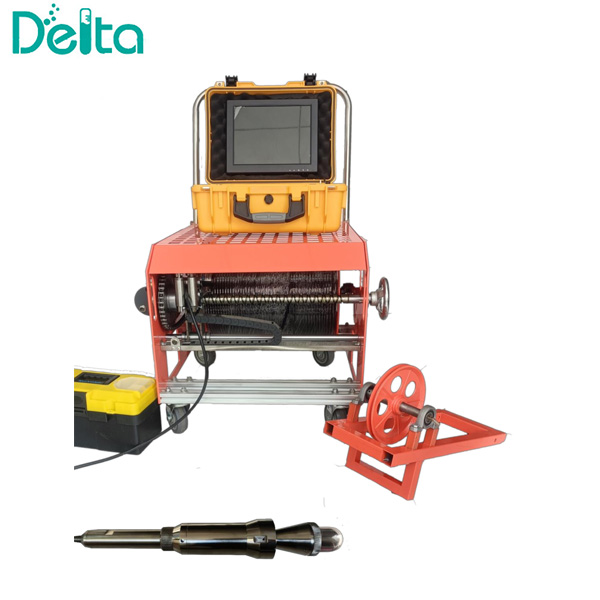

The product includes 80mm spherical camera probe, yellow APS main control box, hand push integrated detachable electric winch and tool box, All components can be customized.
EMAIL INQUIRY

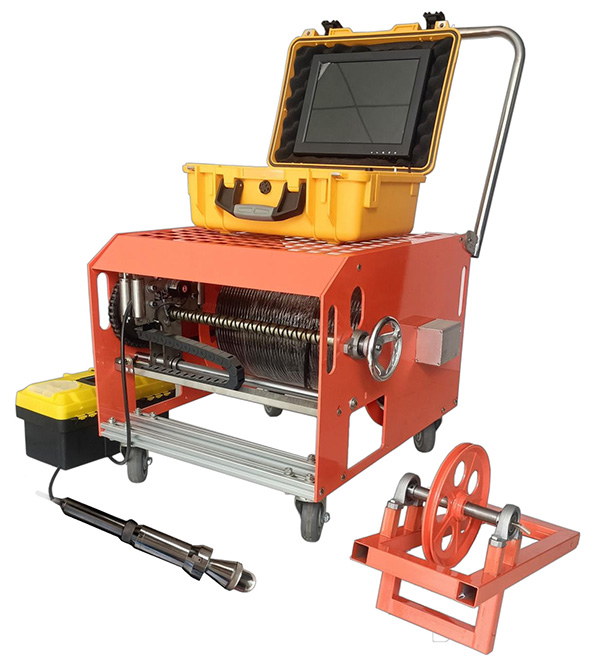

DT-80D5 80mm 360° Rotate Borehole Logging Equipment Inspection Camera

DT-80D5 80mm 360° Rotate Borehole Logging Equipment Inspection Camera.jpg

Introduction:

DT-80D5 80mm 360° Rotate Borehole Logging Equipment Inspection Camera is a professional instrument for borehole testing, which adopts the latest TV camera technology to clearly reflect various states of borehole wall to the monitor on the ground.

Images can be saved by video equipment or a microcomputer, providing a reliable basis for analyzing various geological conditions in the well.

Functions:

1. To inspection the water leakage of the well

2. To imaging the blockage of the well

3. To help the repair of the well

4. Provide broadcast quality video of the underwater world

5. Back to the surface from up to within 2000m below,

6. This camera can be viewed in real time or recorded for later viewing

7. Underwater survey and water well inspection

Features:

1). Support NTSC PAL camera;

2). H264 H265 image compression technology;

3). Support video capture;

4). Can switch among six languages: Chinese, English, German, Spanish, Polish, French;

5). Support serial port command communication;

6). OSD on and off;

7). Image brightness/chroma/contrast/mirror settings;

8). Power on-off protection function;

9). SMP4 video file format;

10). With a 512G capacity SD card;

11). SD card upgrade firmware;

12). USB connection to computer to read card data;

Main Parameters:

No.	Parts Name	Photo	Main Parameters

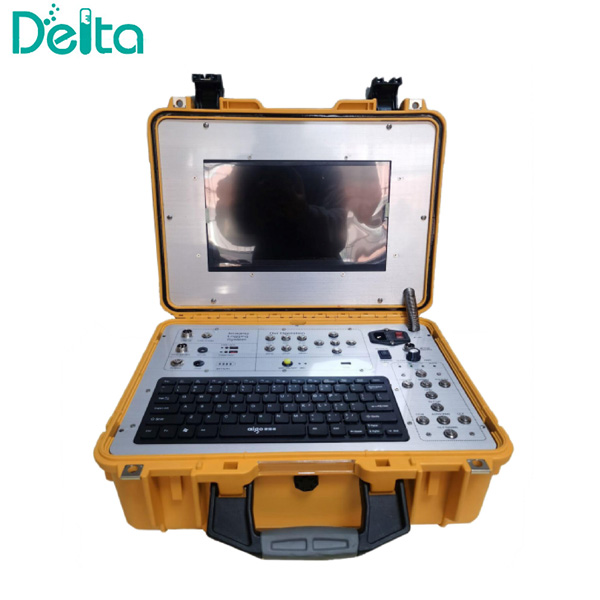

1	Controller		* APS main control box, size: 415340144 * Voltage input: 12V/220V * Depth interface: connect depth sensor * Probe interface: connect the probe, transmit video and power supply * Display: 12 inch bright LED display, outdoor viewable * Can record, capture photos * U disk storage video files, can be played back on site * Video can be magnified eight times

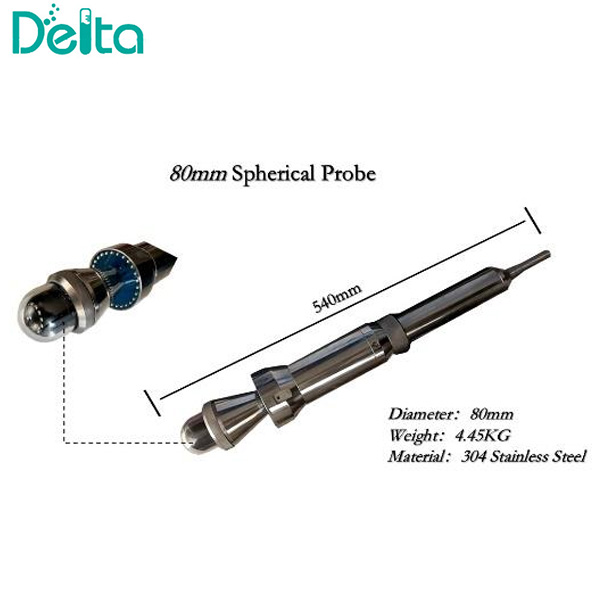

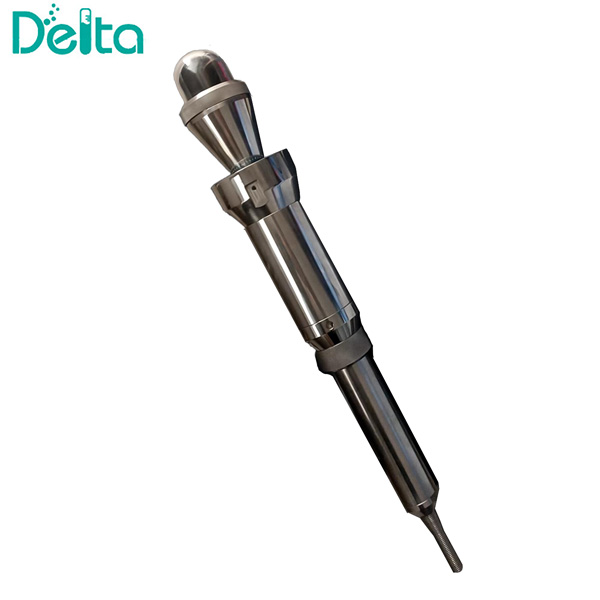

2	Camera		* Camera Material: stainless steel * Camera Size: ø80mmX300mm * Camera Lens Material: highly transparent quartz glass lens * Camera Pixels: 1200TVL * Rotation Angle: 360° horizontally, 180° vertically * Focal Length: variable * Viewing Angle: 60° * Clear Vision: 100~600MM * LED Light: supports 10-level micro-dimming * HD Glass Lens: 3.9 cone glass lens/F2.0 * Camera Housing Material: stainless steel * Probe Pressure resistance: 20 MPa  Horizontal motion control (supports single step/multi-step)  Pitch motion control (supports single step/multi-step)  One-click AutoPan automatic scanning  Speed setting/dynamic switching  Step size setting/dynamic switching

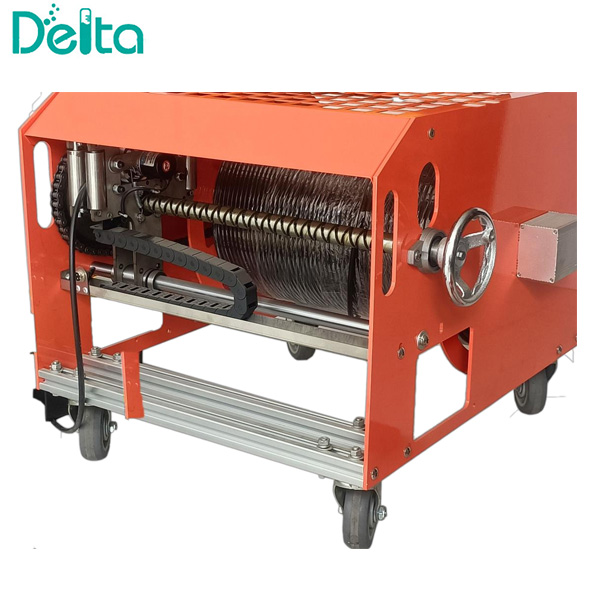

3	Winch		* Left is Electric winch + orange trolley cart + automatic wiring device, other kinds of winches are optional; * Main Control Box Tray: stainless steel tray, removable, easy to transport * Depth Counting Pulley: downhole pulley with depth counting function * Depth Counting Function: the depth is accurate to 0.005 meters. If there is an error, the depth can be calibrated * Depth to Zero: please reset the depth to zero before logging to ensure accurate counting * Motor: DC speed-regulating motor, self-locking when power off * Winch: stamping reinforced wire retaining plate The automatic cable routing device mainly consists of 4 parts, which are bolt、fine tuning knob、wiring unit、lead screw. * Quick Wiring: can quickly complete the arrangement of cables and increase the efficiency of traditional manual wiring several times * Accurate Wiring: can ensure the position and spacing of the cable, improve the stability of the cable work (can be fine-tuned cable spacing)
4	Displayer		12 inch BNC/VGA/HDMI/USB industrial control display: Contrast ratio: 450:1 Brightness: 500cd/㎡ Resolution: 1280 * 800
5	Cable		Cable material; Light and heat resistant material Pulling capacity: 280KG Outer diameter: 8mm Temperature resistance: 70 degrees Celsius
6	Downhole Pulley		With electronic meter counting function
7	Tools		Power cable and other connection cables.
