DT-55B3 180 Degree Rotatable Waterproof Driling Camera with Video Recording

DT-55B3 180 Degree Rotatable Waterproof Driling Camera with Video Recording

DT-55B3 180 Degree Rotatable Waterproof Driling Camera with Video Recording

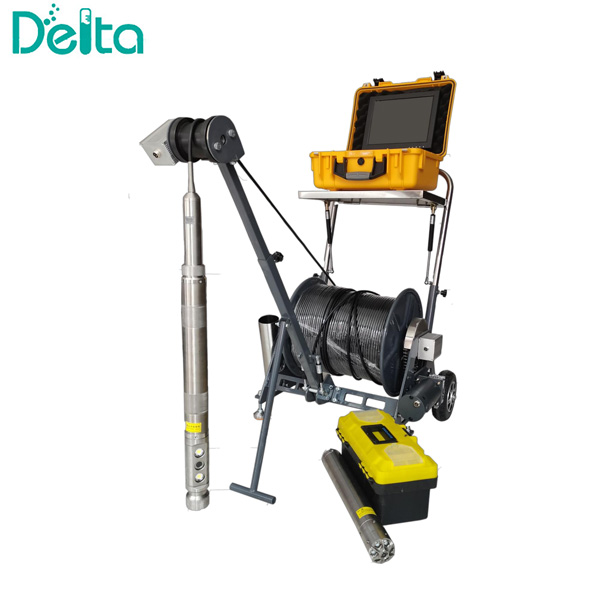

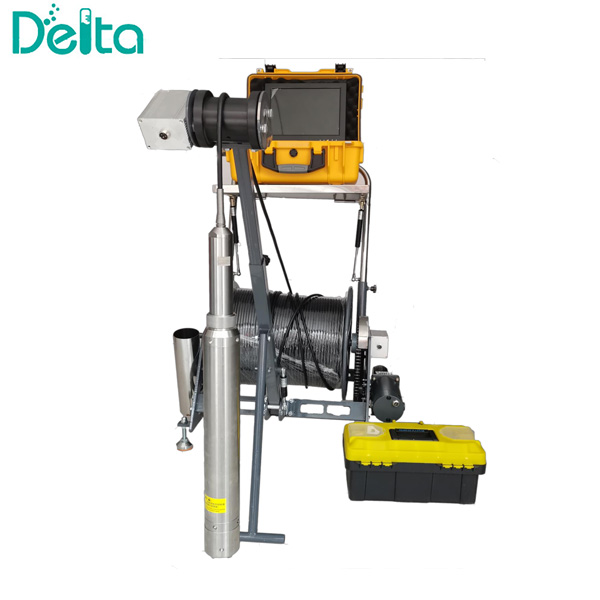

The product includes 55mm dual camera probe, yellow APS main control box, hand push integrated detachable electric winch, wellhead pulley and tool box, All components can be customized
EMAIL INQUIRY

DT-55B3 180 Degree Rotatable Waterproof Driling Camera with Video Recording


Introduction:

DT-55B3 180 Degree Rotatable Waterproof Driling Camera with Video Recording is a professional instrument for borehole testing, which adopts the latest TV camera technology to clearly reflect various states of borehole wall to the monitor on the ground.

Images can be saved by video equipment or a microcomputer, providing a reliable basis for analyzing various geological conditions in the well.

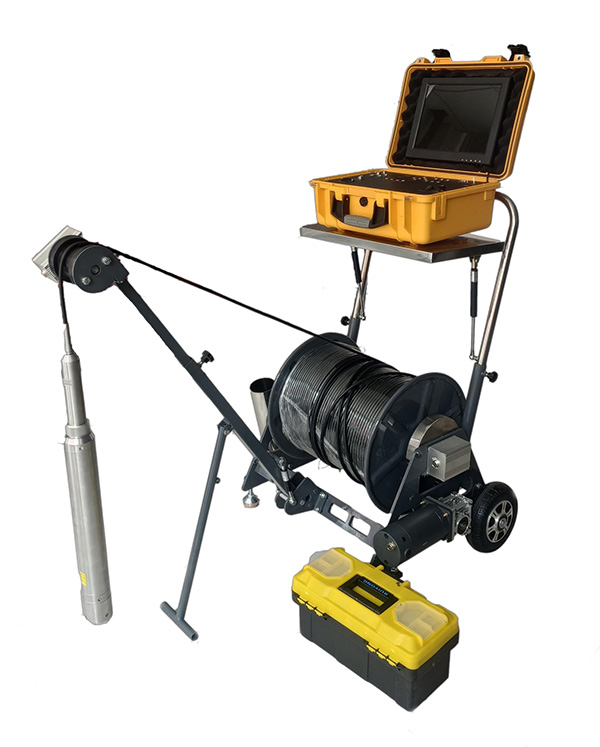

The product includes 55mm dual camera probe, yellow APS main control box, hand push integrated detachable electric winch, wellhead pulley and tool box, All components can be customized.

Functions:

1. To inspection the water leakage of the well

2. To imaging the blockage of the well

3. To help the repair of the well

4. Provide broadcast quality video of the underwater world

5. Back to the surface from up to within 2000m below,

6. This camera can be viewed in real time or recorded for later viewing

7. Underwater survey and water well inspection

Features:

1). Support NTSC PAL camera;

2). H264 H265 image compression technology;

3). Support video capture;

4). Can switch among six languages: Chinese, English, German, Spanish, Polish, French;

5). Support serial port command communication;

6). OSD on and off;

7). Image brightness/chroma/contrast/mirror settings;

8). Power on-off protection function;

9). SMP4 video file format;

10). With a 512G capacity SD card;

11). SD card upgrade firmware;

12). USB connection to computer to read card data;

Main Parameters:

No.	Parts Name	Photo	Main Parameters

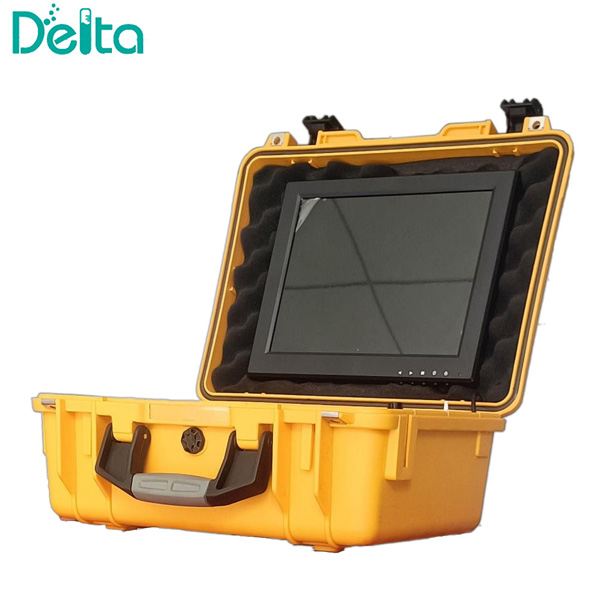

1	Controller		* APS Main Control Box (Size: 415340144) * Voltage Input: 12V/220V * Depth Interface: connect depth sensor * Probe Interface: connect the probe, transmit video and power * Monitor: 12-inch high-brightness LED display, outdoor viewable * Can record, capture photos, and can be linked to external keyboard input * Control the Focus, the Speed of Rotation and Tilt, etc. * The USB flash drive stores video files and can be played back on site.

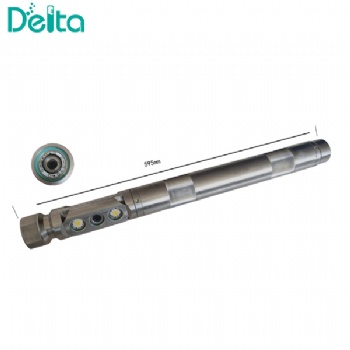

2	Camera		Camera type: 180 Degree Rotate HD Dual Camera Camera material: Stainless steel * Camera size: Φ55mm * Camera lens material: front high transparent quartz glass; * Camera pixels: Sony CCD camera, 750 cable * Lens angle: 95 degrees * Camera light: 8 bright LED beads on the front, LED strong light source beads on the side * Probe withstand pressure: 20MPA, maximum pressure depth up to 2000 meters * The side camera can rotate 360 degrees * One-click toggle video display

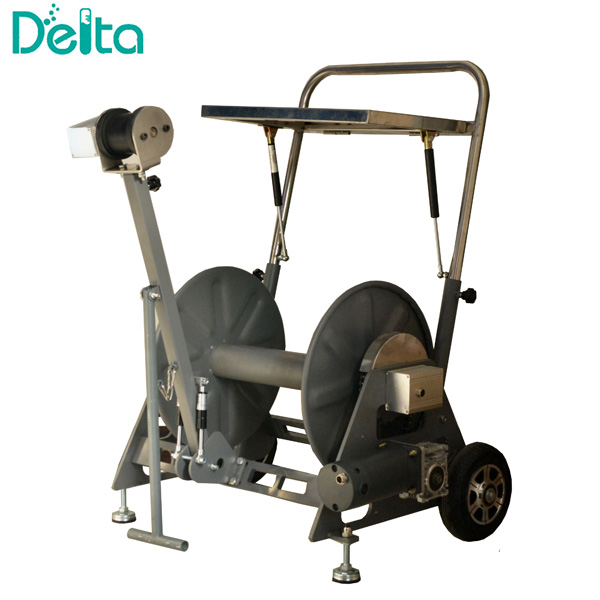

3	Winch		* Hand push integrated detachable winch * Manual control of cable lift and speed * Main control box tray: stainless steel tray, removable, easy to transport * Depth counting pulley: The downhole pulley has a depth counting function and requires a data cable to connect to the main control box for use. * Depth counting function: The depth is accurate to 0.005 meters. If there is an error, the depth can be calibrated. * Depth to zero: Please reset the depth to zero before logging to ensure accurate counting. Motor: DC speed regulating motor, self-locking when power off Winch: Stamping reinforced wire retaining plate
4	Displayer		12 inch BNC/VGA/HDMI/USB industrial control display: Contrast ratio: 450:1 Brightness: 500cd/㎡ Resolution: 1280 * 800
5	Cable		Cable material; Light and heat resistant material Pulling capacity: 280KG Outer diameter: 8mm Temperature resistance: 70 degrees Celsius
6	Wellhead Pulley		With electronic meter counting function
7	Tools		Power cable and other connection cables.
