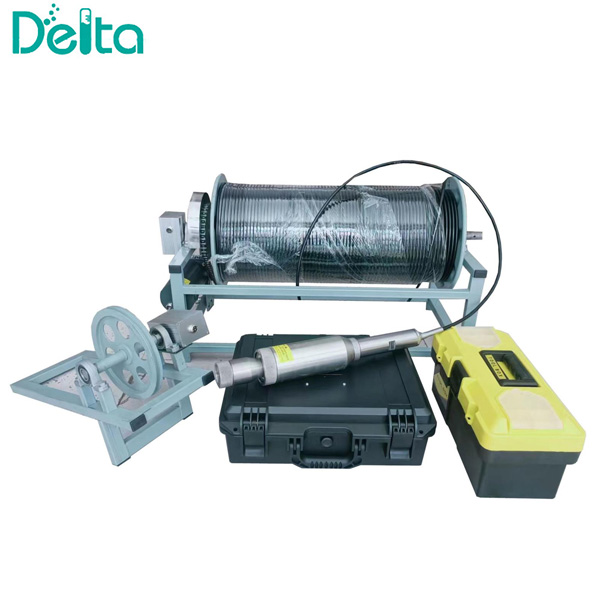

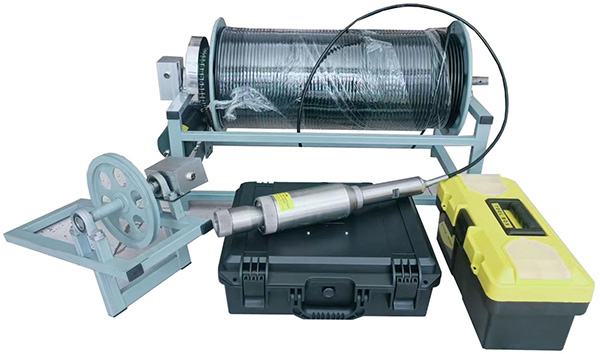

DT-73A2 73mm Underground Borehole Test Camera with Electric Winch

DT-73A2 73mm Underground Borehole Test Camera with Electric Winch

Introduction:

DT-73A2 73mm Underground Borehole Test Camera with Electric Winch is a professional instrument for borehole testing, which adopts the latest TV camera technology to clearly reflect various states of borehole wall to the monitor on the ground.

Images can be saved by video equipment or a microcomputer, providing a reliable basis for analyzing various geological conditions in the well.

Functions:

1. To inspection the water leakage of the well

2. To imaging the blockage of the well

3. To help the repair of the well

4. Provide broadcast quality video of the underwater world

5. Back to the surface from up to within 2000m below,

6. This camera can be viewed in real time or recorded for later viewing

7. Underwater survey and water well inspection

Features:

1). Support NTSC PAL camera;

2). H264 H265 image compression technology;

3). Support video capture;

4). Can switch among six languages: Chinese, English, German, Spanish, Polish, French;

5). Support serial port command communication;

6). OSD on and off;

7). Image brightness/chroma/contrast/mirror settings;

8). Power on-off protection function;

9). SMP4 video file format;

10). With a 512G capacity SD card;

11). SD card upgrade firmware;

12). USB connection to computer to read card data;

Main Parameters:

No.	Parts Name	Photo	DT-73A1 73mm Cheap Borehole Camera with Manual Winch

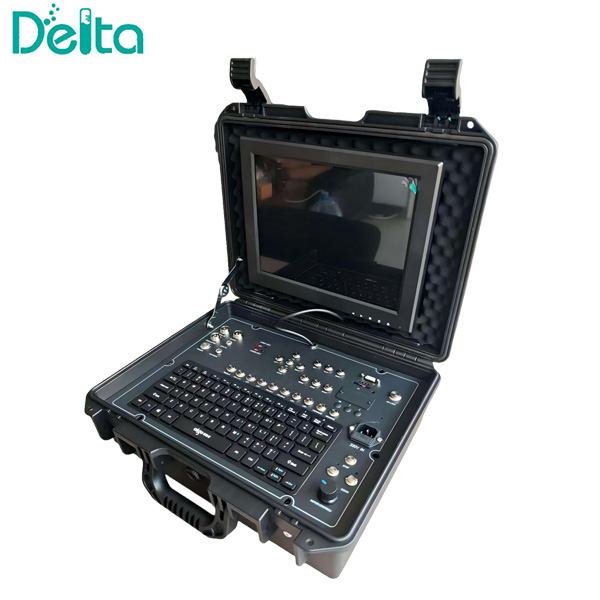

1	Controller		* APS main control box, size: 415*340*144 * Voltage input: 12V/220V * Depth interface: connect depth sensor * Probe interface: connect the probe, transmit video and power supply * Display: 12 inch bright LED display, outdoor viewable * Can record, capture photos * U disk storage video files, can be played back on site * Video can be magnified eight times

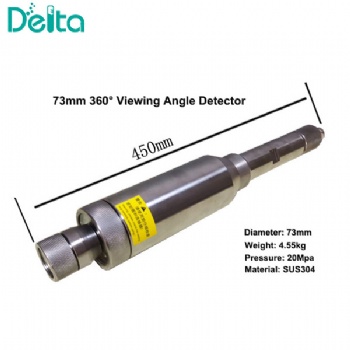

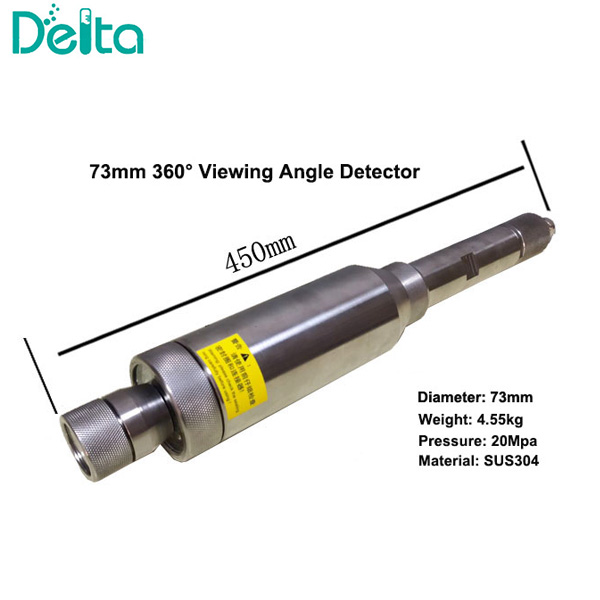

2	Camera		* Camera type: Panoramic camera * Camera material: Stainless steel * Camera size: Φ73mm * Camera lens material: front high transparent quartz glass; * Camera pixels: Sony CCD camera, 750 cable * Lens angle: 95 degrees * Camera light: 8 bright LED beads on the front, LED strong light source beads on the side    * Probe withstand pressure: 20MPA, maximum pressure depth up to 2000 meters * The side camera can rotate 360 degrees * One-click toggle video display

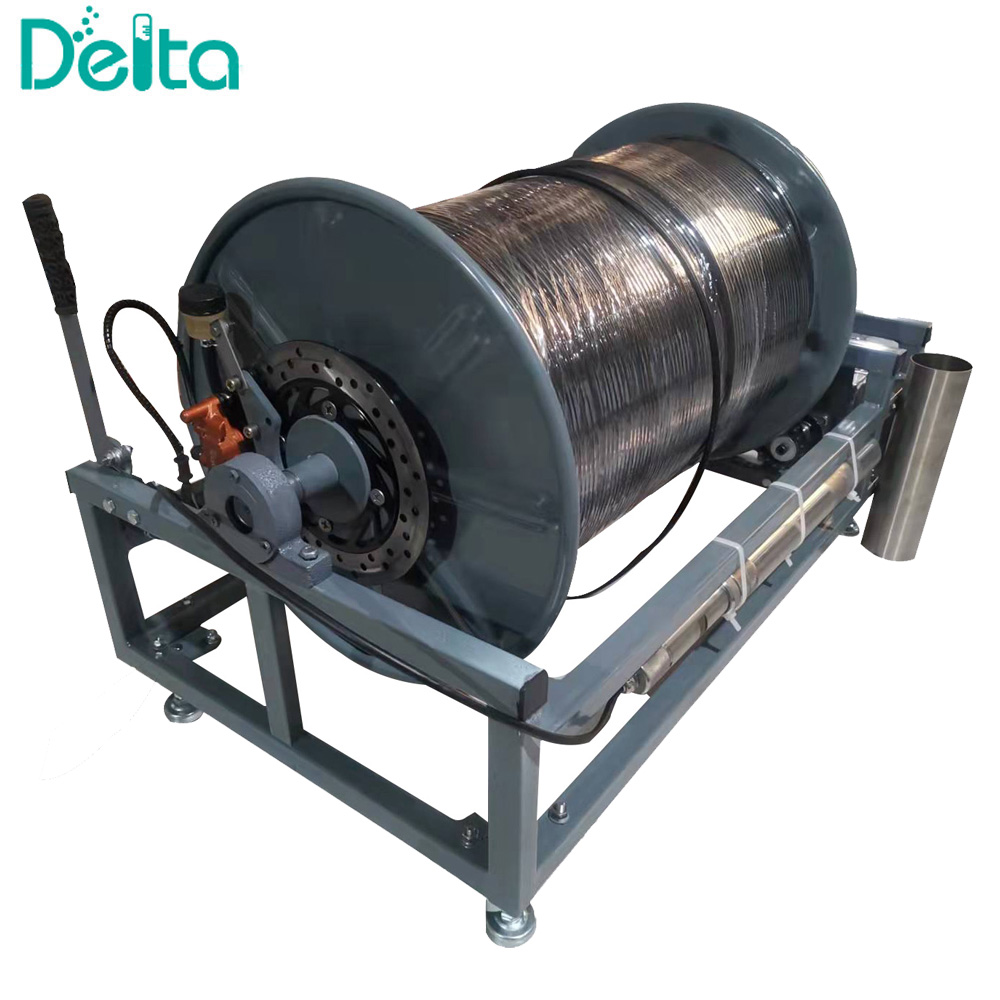

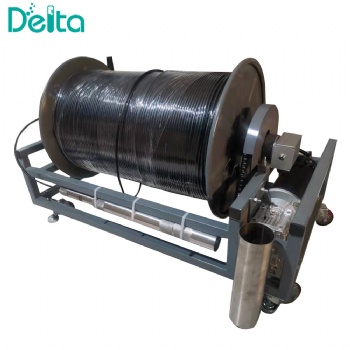

3	Winch		* Left is Electric winch, other kinds of winches are optional; * Stamped reinforced baffle reel; * Winch frame material: iron * Photoresistant material ruber cable; * Tensile: 280KG * Outer diameter: 8mm                  * Temperature resistance: 70 degrees
4	Displayer		*12 inch BNC/VGA/HDMI/USB industrial control display: *Contrast ratio: 450:1 *Brightness: 500cd/㎡ *Resolution: 1280 * 800
5	Cable		*Cable material; Light and heat resistant material *Pulling capacity: 280KG *Outer diameter: 8mm *Temperature resistance: 70 degrees Celsius
6	Downhole Pulley		With electronic meter counting function
7	Tools		Power cable and other connection cables.
