DT-55B6 Most Advanced Automatic Underground Borehole Camera

DT-55B6 Most Advanced Automatic Underground Borehole Camera

Most Advanced Automatic Underground Borehole Camera model DT-55B6.

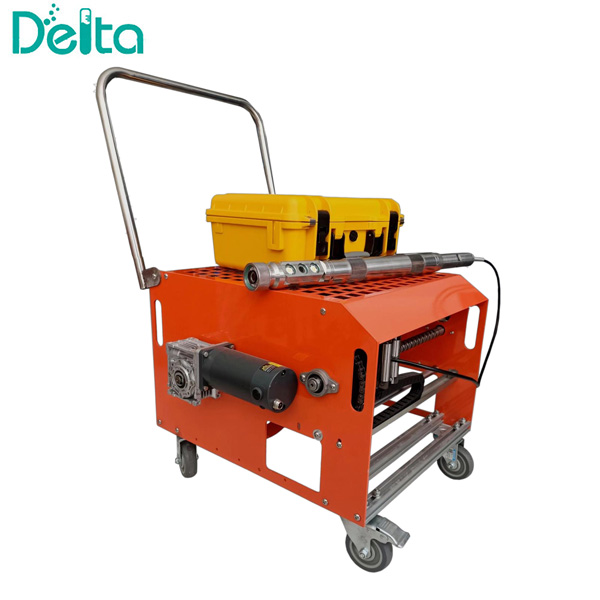

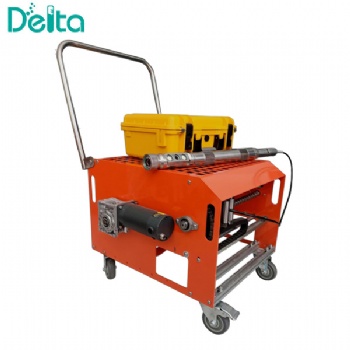

The product includes 55mm dual camera probe, yellow APS main control box, orange hand push integrated detachable electric winch, automatic wiring device, wellhead pulley and tool box.
EMAIL INQUIRY

DT-55B6 Most Advanced Automatic Underground Borehole Camera

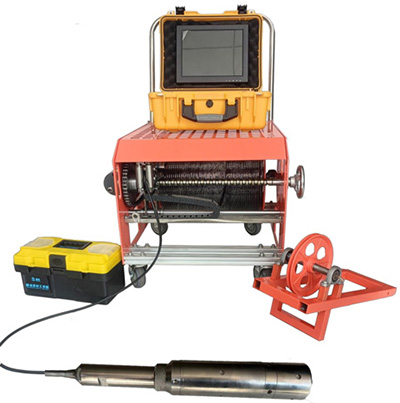

DT-55DCA Most Advanced Automatic Underground Borehole Camera 02.jpg

Introduction:

DT-55B6 Most Advanced Automatic Underground Borehole Camera is a professional instrument for borehole testing, which adopts the latest TV camera technology to clearly reflect various states of borehole wall to the monitor on the ground.

Images can be saved by video equipment or a microcomputer, providing a reliable basis for analyzing various geological conditions in the well.

The product includes 55mm dual camera probe, yellow APS main control box, orange hand push integrated detachable electric winch, automatic wiring device, wellhead pulley and tool box, All components can be customized.

Functions:

1. To inspection the water leakage of the well

2. To imaging the blockage of the well

3. To help the repair of the well

4. Provide broadcast quality video of the underwater world

5. Back to the surface from up to within 2000m below,

6. This camera can be viewed in real time or recorded for later viewing

7. Underwater survey and water well inspection

Features:

1). Support NTSC PAL camera;

2). H264 H265 image compression technology;

3). Support video capture;

4). Can switch among six languages: Chinese, English, German, Spanish, Polish, French;

5). Support serial port command communication;

6). OSD on and off;

7). Image brightness/chroma/contrast/mirror settings;

8). Power on-off protection function;

9). SMP4 video file format;

10). With a 512G capacity SD card;

11). SD card upgrade firmware;

12). USB connection to computer to read card data;

Main Parameters:

No.	Parts Name	Photo	Main Parameters

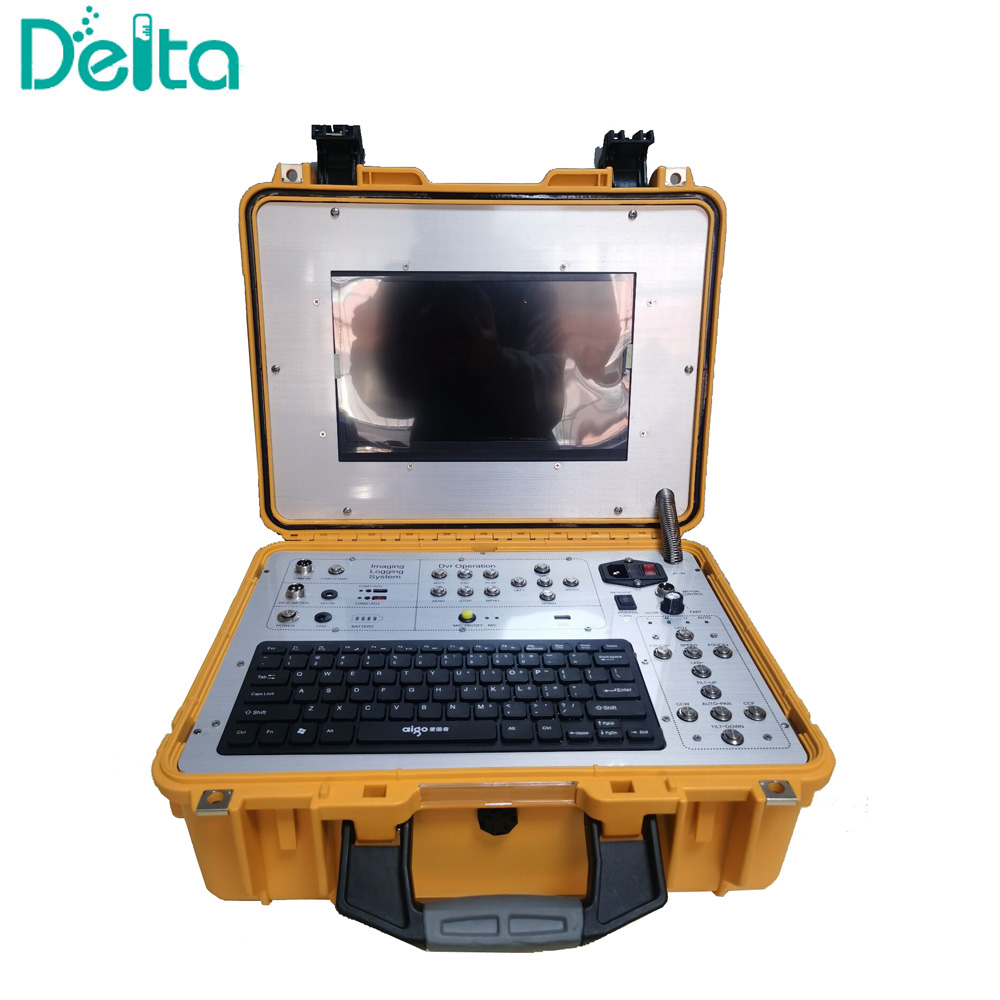

1	Controller		* APS Main Control Box (Size: 415340144) * Voltage Input: 12V/220V * Depth Interface: connect depth sensor * Probe Interface: connect the probe, transmit video and power * Monitor: 12-inch high-brightness LED display, outdoor viewable * Can record, capture photos, and can be linked to external keyboard input * Control the Focus, the Speed of Rotation and Tilt, etc. * The USB flash drive stores video files and can be played back on site.

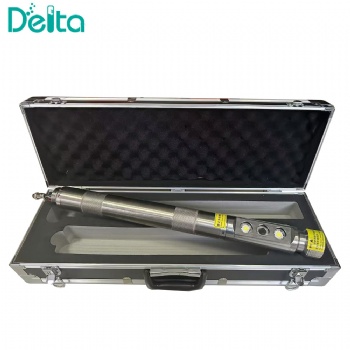

2	Camera		Camera type: 180 Degree Rotate HD Dual Camera Camera material: Stainless steel * Camera size: Φ55mm * Camera lens material: front high transparent quartz glass; * Camera pixels: Sony CCD camera, 750 cable * Lens angle: 95 degrees * Camera light: 8 bright LED beads on the front, LED strong light source beads on the side * Probe withstand pressure: 20MPA, maximum pressure depth up to 2000 meters * The side camera can rotate 360 degrees * One-click toggle video display
3	Winch		* Left is Electric winch + orange trolley cart + automatic wiring device, other kinds of winches are optional; * Main Control Box Tray: stainless steel tray, removable, easy to transport * Depth Counting Pulley: downhole pulley with depth counting function * Depth Counting Function: the depth is accurate to 0.005 meters. If there is an error, the depth can be calibrated * Depth to Zero: please reset the depth to zero before logging to ensure accurate counting * Motor: DC speed-regulating motor, self-locking when power off * Winch: stamping reinforced wire retaining plate The automatic cable routing device mainly consists of 4 parts, which are bolt、fine tuning knob、wiring unit、lead screw. * Quick Wiring: can quickly complete the arrangement of cables and increase the efficiency of traditional manual wiring several times * Accurate Wiring: can ensure the position and spacing of the cable, improve the stability of the cable work (can be fine-tuned cable spacing)
4	Displayer		12 inch BNC/VGA/HDMI/USB industrial control display: Contrast ratio: 450:1 Brightness: 500cd/㎡ Resolution: 1280 * 800
5	Cable		Cable material; Light and heat resistant material Pulling capacity: 280KG Outer diameter: 8mm Temperature resistance: 70 degrees Celsius
6	Wellhead Pulley		With electronic meter counting function
7	Tools		Power cable and other connection cables.
